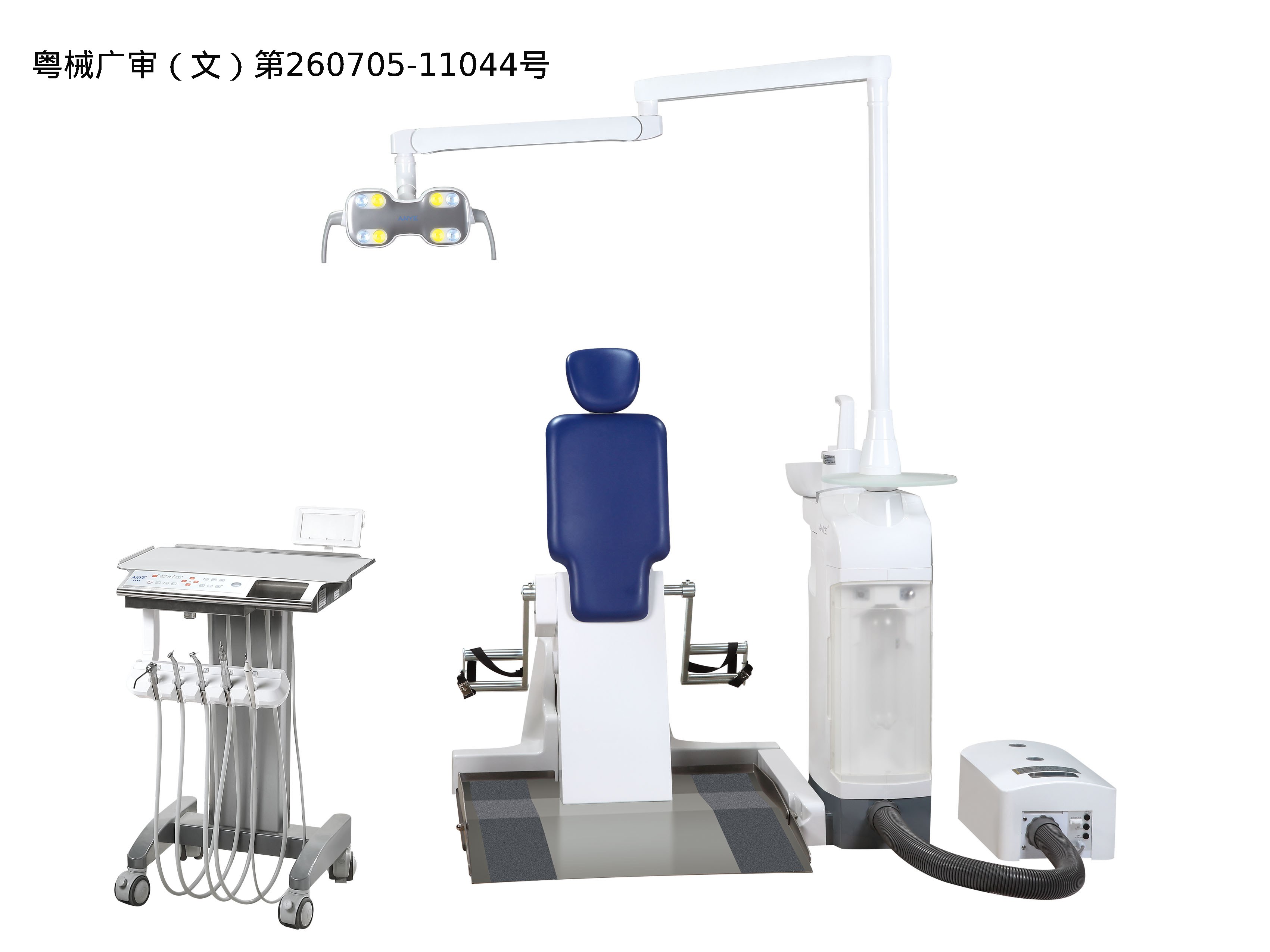

Rehabilitation Dental Unit AY-215E1

The first rehabilitation dental chair in China is in ANYE AY-215E1. Special populations are the research and development direction of ANYE, which solves the dental problems of special populations in many aspects. It integrates convenience, comfort, safety and ease of use to comprehensively solve the treatment needs of special populations, a significant breakthrough in the dental chair design.

DENTAL

REHABILITATION

CHAIR

Unique Design Concept

New Lifting Platform

Silent Imported DC Motor

Comfortable Headrest

LED Dental Light

Infrared Emergency Switch

Easy Operation

Product Details:

Multi-function Operation Panel

With 18 key control panels, with 9 memory chair position system, one key to adjust to the common working position, one key to spit, greatly improve the doctor's work efficiency.

Movable Instrument Tray

Flexible movement, the mobile phone holder can be rotated and hidden to prevent scratches, and the stainless steel handle is convenient for cleaning and disinfection.

Deluxe Removable Ceramic Spittoon

The spittoon is detachable for easy cleaning, and it can also be rotated by 90° for patients to spit.

White and Yellow Light LED Operating Light

Philips LED light source. 4 white light emitting diodes (LED), 4 white light emitting diodes (with filter) dedicated dental lamp, has a wide projection angle, high illumination adjustable from ＜8,000 to ＞30,000, infrared sensor switch or touch switch to control stepless dimming, color te

mperature selection 5000k ± 10%.

Adjustable and Comfortable Headrest

The adjustable curved headrest is more comfortable than the traditional flat headrest, prevents head shaking when visiting a doctor, and can be adjusted in multiple angles.

Fixed Frame

The nut can be turned back and forth to adjust the swing arm to a position suitable for the size of the wheelchair.

Wheelchair Fixing Device

Push-type drawing connector, easy to operate, safe and stable.

Stainless Steel Bottom Plate

The track is frosted and anti-slip treated, and the supporting base plate is made of 4mm stainless steel plate to ensure the safety of the patient when getting on and off.

Multifunctional Pedal

With self-locking function, it can control the functions of dental chair lifting, backrest tilting, chip blowing, phlegm discharge and water supply.With self-locking function, it can control the functions of dental chair lifting, backrest tilting, chip blowing, spittoon flush and water supply.

Hidden Water Storage Bottle

For controlling water quality. It can also provide long-lasting and manual disinfection of dental units using line disinfectant.

Key parts:

Import Motor

Import Medical Water & Air Tube

Import Solenoid Valve

Import Member And Valve

Technical Parameters:

Power Voltage	220V-50HZ/60HZ
Motor Voltage	24V
Air source Pressure	0.5MPa-0.8MPa
Water source Pressure	0.2MPa-0.4MPa

LED Light:

Rated input Voltage AC	24V±10%
Maximum Power	25VA
Light Source	4 white light-emitting diodes (LED) and 4 yellow light-emitting diodes (LED)
Color Temperature	5,000K - 5,700K
Illuminance	Adjustable from ＜8,000 to ＞30,000
